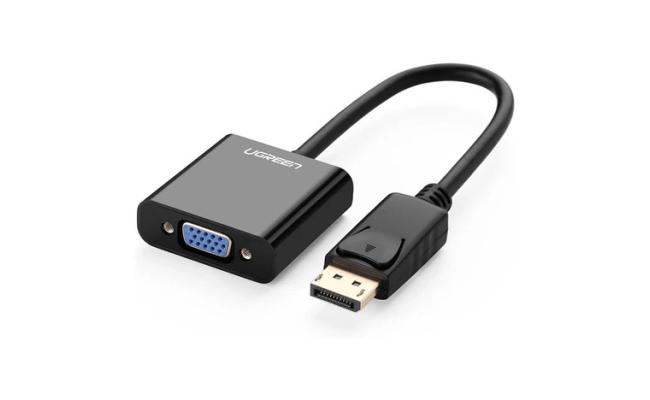

UGREEN DisplayPort to VGA Converter – Black | DP109-20415

The UGREEN DisplayPort to VGA Converter (Model DP109-20415) is a compact active signal converter that instantly bridges DisplayPort-equipped computers, laptops, and graphics cards to VGA monitors, projectors, and displays — without drivers, external power, or complex setup. Featuring a built-in active conversion chipset, 1920×1200 maximum resolution support, gold-plated connector contacts, ABS housing, and a 15cm cable for clean desk integration — the UGREEN 20415 is the essential connectivity solution for connecting modern DP-output devices to legacy VGA infrastructure in offices, classrooms, and home workspaces.

ACTIVE DIGITAL-TO-ANALOG CONVERSION — BUILT-IN CHIPSET

The UGREEN 20415 is an active converter — not a passive adapter. A built-in signal conversion chipset actively processes the DisplayPort digital signal and converts it to a VGA analog signal compatible with all standard VGA displays. Active conversion ensures stable, clean signal output at full resolution without the signal degradation, flicker, or incompatibility that passive passive adaptors produce with certain DisplayPort sources. The chipset is bus-powered directly from the DisplayPort interface — no external USB power cable or adapter required.

ONE-WAY SIGNAL DIRECTION — DP SOURCE TO VGA DISPLAY ONLY

The UGREEN 20415 transfers signal in one direction only: from a DisplayPort output device (laptop, desktop, graphics card) to a VGA input display (monitor, projector, TV). It is not bidirectional — it cannot convert a VGA signal source to a DisplayPort display. Connect the DisplayPort male plug to your computer's DP port and connect a VGA cable (not included) from the VGA female port to your display.

1920×1200 MAXIMUM RESOLUTION — FULL HD & WUXGA

The 20415 supports video output up to 1920×1200 (WUXGA) — exceeding standard Full HD 1920×1080 — across the full range of VGA-standard resolutions:

- 1920×1200 @ 60Hz (WUXGA maximum)

- 1920×1080 @ 60Hz (Full HD)

- 1024×768 @ 75Hz (XGA standard)

- And all lower standard VGA resolutions

Maximum output resolution is limited by the connected VGA display's native resolution capability. The 20415 delivers the full resolution range the display supports.

BROAD DISPLAYPORT SOURCE COMPATIBILITY

Compatible with all DisplayPort interface variants:

- Standard DisplayPort (DP)

- DisplayPort++ (DP++, dual-mode DisplayPort)

- DisplayPort 1.1, 1.2, 1.4 sources

Works with DisplayPort-equipped desktops, laptops, and dedicated graphics cards from all major brands — including HP EliteBook, Dell OptiPlex, Acer Chromebox, ASUS, Lenovo ThinkPad, and any PC with a standard DP output port.

GOLD-PLATED CONNECTOR CONTACTS — SIGNAL INTEGRITY AT THE INTERFACE

The DisplayPort male connector features gold-plated contacts — maintaining corrosion-free, low-resistance electrical contact across all DisplayPort signal pins for the lifetime of the converter. Gold plating prevents the oxidation-related signal degradation and intermittent connection that bare copper contacts develop over time in variable-humidity environments.

ABS HOUSING — DURABLE, LIGHTWEIGHT, HEAT-RESISTANT

The 20415's connector body and housing are constructed from ABS (Acrylonitrile Butadiene Styrene) plastic — a material selected for its combination of impact resistance, heat resistance, and lightweight properties. ABS housing withstands the mechanical stress of daily plug-in and removal cycles without cracking or deforming, and dissipates the low heat generated by the active conversion chipset during operation.

COMPACT 15CM DESIGN — DESK-READY, TRAVEL-READY

The 15cm (0.15M) cable length keeps the converter snug to the host device — eliminating the dangling slack of full-length adapter cables and maintaining a tidy desk setup. The compact form factor slips into any laptop bag, briefcase, or accessory pouch for effortless portability to meetings, classrooms, and presentations.

PLUG & PLAY — NO DRIVERS, NO SOFTWARE

Connect the DisplayPort plug to your computer and attach a VGA cable to the female output — the display activates immediately with no driver installation, no software configuration, and no reboot required. Compatible with Windows 11/10/8.1/8/7 and macOS out of the box.

EXTENDED DESKTOP & MIRROR MODE

Supports both extended desktop and mirrored display configurations — enabling dual-monitor productivity setups (extended) or presentation/teaching mirror mode (duplicate) with a single plug-in. Display mode is configured through standard operating system display settings.

NOTE — VGA CABLE NOT INCLUDED

A separate VGA cable is required to connect the 20415's VGA female output to the target display. The UGREEN 20415 includes only the converter — not a VGA cable.

KEY SPECIFICATIONS

- Model: UGREEN DP109 / 20415

- Input: DisplayPort (DP / DP++ / DisplayPort++) Male

- Output: VGA Female (DE-15)

- Conversion: Active (built-in chipset, digital DP to analog VGA)

- Signal Direction: One-way (DP source → VGA display only)

- Max Resolution: 1920×1200 @ 60Hz / 1920×1080 @ 60Hz

- Supported Resolutions: 1920×1200, 1920×1080, 1024×768, and lower VGA standards

- Cable Length: 15cm (0.15M)

- Housing: ABS plastic

- Connector Finish: Gold-plated (DisplayPort)

- Power: Bus-powered (DisplayPort interface — no external power required)

- Display Modes: Extended desktop, Mirror/Duplicate

- Plug & Play: Yes (no drivers required)

- OS: Windows 11/10/8.1/8/7, macOS

- Colour: Black

- Warranty: 2-Year UGREEN Limited Warranty

- In the Box: UGREEN DP to VGA Converter (1x) — VGA cable not included
